* 400W Peak Pulse Power Dissipation (10µs × 1000µs Waveform)
* 5V to 200V Standoff Voltages
* Provides ESD Protection per IEC61000-4-2 Standard: Air ±30kV, Contact ±30kV
* Excellent Clamping Capability
* Fast Response Time: Typically Less Than 1.0ns for Uni-Di
SMF4L58AQ Datasheet (451.79 KB)
SMF4L58AQ
451.79 KB
400w surface-mount transient voltage suppressor.

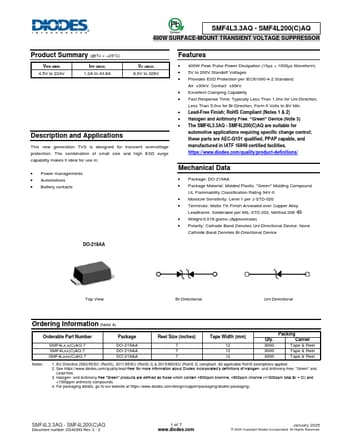

SMF4L3.3AQ - SMF4L200(C)AQ Green 400W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR Product Summary (@TA = +25°C) VBR (MIN) 4.5V to 224V IPP (MAX) 1.2.
