SMF4L58A, SMF4L5.0A, TVS Diodes

SMF4L Series Surface Mount * 400W TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Additional Information Resources Agency .
The SMF4L series of SOD-123FL small and flat lead low-profile plastic package is designed specifically to protect sensitive electronic equipment from.

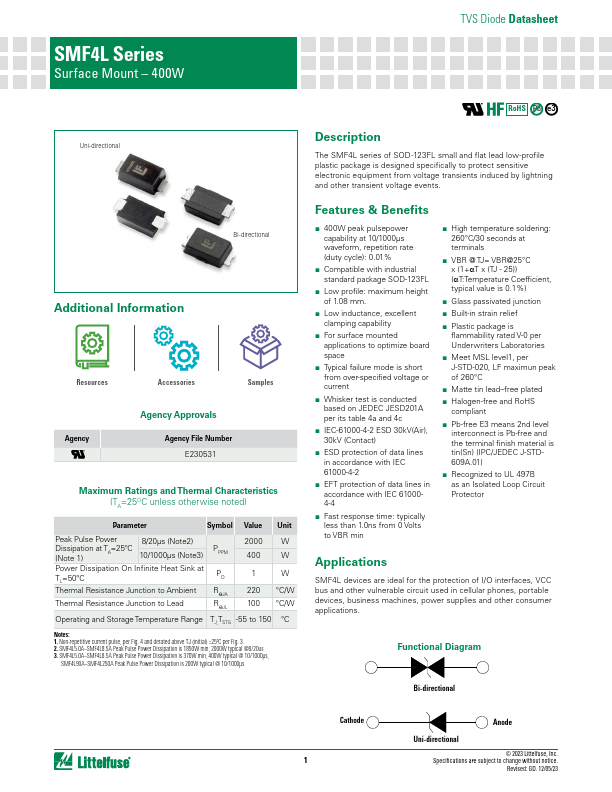

datasheet Preview Page 1 from Datasheet4u.com

SMF4L5.0A-Littelfuse.pdf

SMF4L58A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMF4L58A, SMF4L5.0A. Please refer to the document for exact specifications by model.

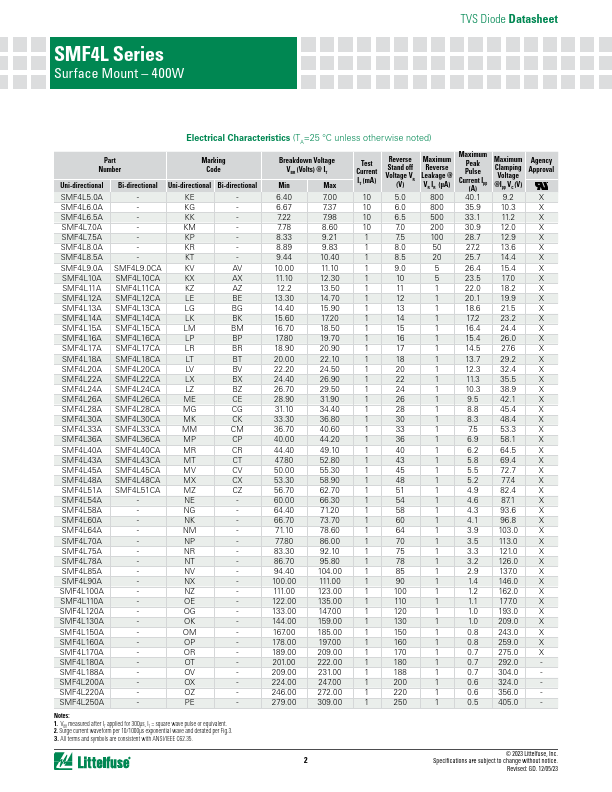

Datasheet Details

Part number:

SMF4L58A, SMF4L5.0A

Manufacturer:

Littelfuse ↗

File Size:

831.70 KB

Description:

TVS Diodes

Note:

This datasheet PDF includes multiple part numbers: SMF4L58A, SMF4L5.0A.
Please refer to the document for exact specifications by model.

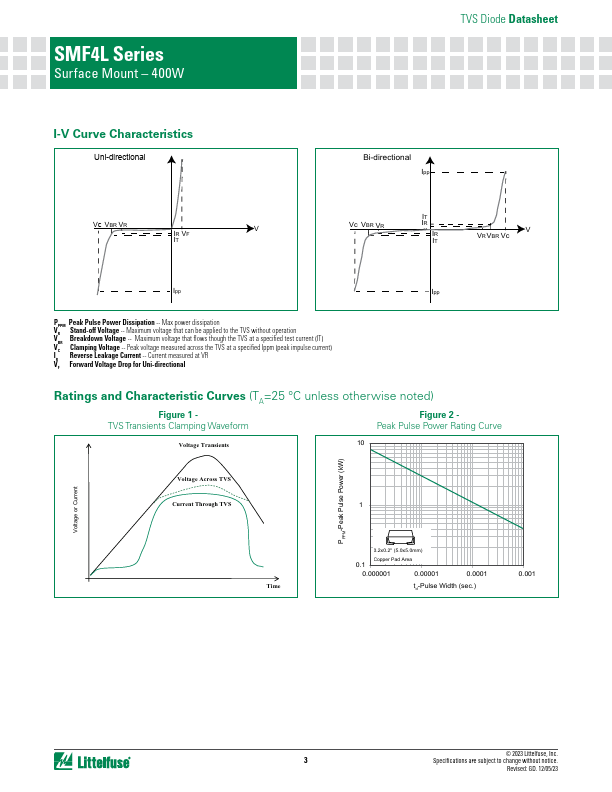

Features

* & Benefits
* 400W peak pulsepower capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%
* Compatible with industrial standard package SOD-123FL
* Low profile: maximum height of 1.08 mm.
* Low inductance, excellent clamping capability
* For surface mounted app

Applications

* to optimize board space
* Typical failure mode is short from over-specified voltage or current
* Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
* IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
* ESD protection of data lines in accordance with IEC 61000-4-2
