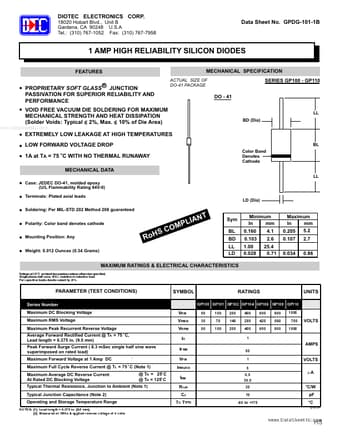

GP108 Features
* MECHANICAL SPECIFICATION R PROPRIETARY SOFT GLASS JUNCTION PASSIVATION FOR SUPERIOR RELIABILITY AND PERFORMANCE VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM MECHANICAL STRENGTH AND HEAT DISSIPATION (Solder Voids: Typical < 2%, Max. < 10% of Die Area) www.DataSheet4U.com ACTUAL SIZE OF DO-41 PACKAGE
Datasheet Details
GP108, GP104
DIOTEC Electronics Corporation
364.88 KB
(gp100 - gp110) 1 amp high reliability silicon diodes.
This datasheet PDF includes multiple part numbers: GP108, GP104. Please refer to the document for exact specifications by model.
