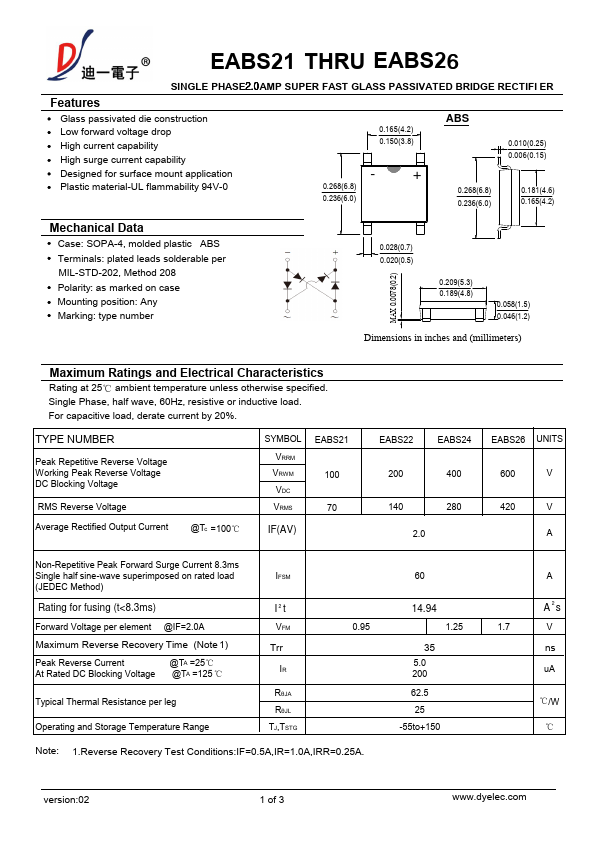

EABS24, EABS21 - SINGLE PHASE AMP SUPER FAST GLASS PASSIVATED BRIDGE RECTIFIER

Datasheet Details

Part number	EABS24, EABS21
Manufacturer	DIYI
File Size	2.80 MB
Description	SINGLE PHASE AMP SUPER FAST GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	EABS21-DIYI.pdf
Note	This datasheet PDF includes multiple part numbers: EABS24, EABS21. Please refer to the document for exact specifications by model.

Glass passivated die construction.
Low forward voltage drop.
High current capability.
High surge current capability 0.165(4.2) 0.150(3.8) ABS 0.010(0.25) 0.006(0.15).
Designed for surface mount.
