HBS810 Features
* Surface mount bridge, small package;
* Ideal for printed circuit boards;
* Glass passivated chip junction;
* High forward current capability up to 8.0A;
* High surge current capability;
* High heat dissipation capability;
* Low profile package;
* Low forward voltage

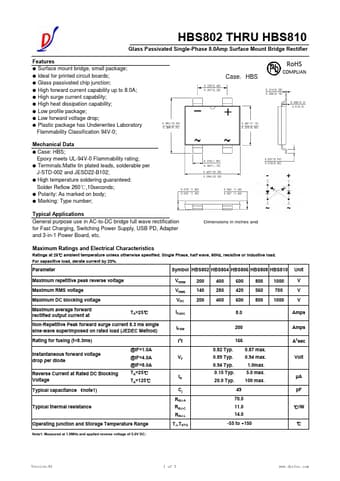

Datasheet Details
HBS810, HBS802
DIYI
391.59 KB
Single-phase 8.0amp surface mount bridge rectifier.
This datasheet PDF includes multiple part numbers: HBS810, HBS802.
Please refer to the document for exact specifications by model.
