HBS402H - 4.0 Amp Surface Mount Bridge Rectifier

HBS402H Description

Elektronische Bauelemente HBS402H~HBS410H Voltage 200V~1000V 4.0 Amp Surface Mount Bridge Rectifier RoHS Compliant Product .

HBS402H Features

* Surface mount bridge, small package
* Ideal for printed circuit boards
* Glass passivated chip junction
* High forward current capability up to 4A
* High surge current capability
* High heat dissipation capability
* Low profile package
* Low forward voltage drop

📥 Download Datasheet

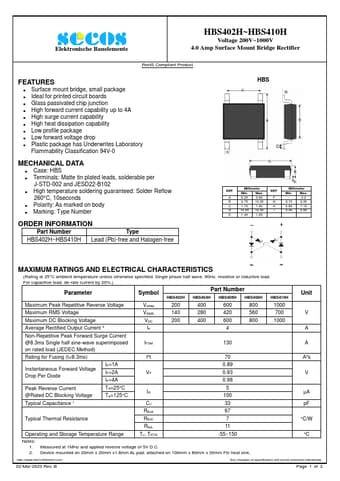

Preview of HBS402H PDF
datasheet Preview Page 2

Datasheet Details

Part number
HBS402H
Manufacturer
SeCoS
File Size
362.92 KB
Datasheet
HBS402H-SeCoS.pdf
Description
4.0 Amp Surface Mount Bridge Rectifier
