HBS406, HBS402 Datasheet - SMC Diode

HBS406 - Single-Phase 4.0Amp Surface Mount Bridge Rectifier

HBS406 Features

* Surface mount bridge, small package;

* Ideal for printed circuit boards;

* Glass passivated chip junction;

* High surge current capability;

* High heat dissipation capability;

* Low profile package;

* Low forward voltage drop;

* Plastic package has Underwrites Labor

HBS402-SMCDiode.pdf

This datasheet PDF includes multiple part numbers: HBS406, HBS402. Please refer to the document for exact specifications by model.

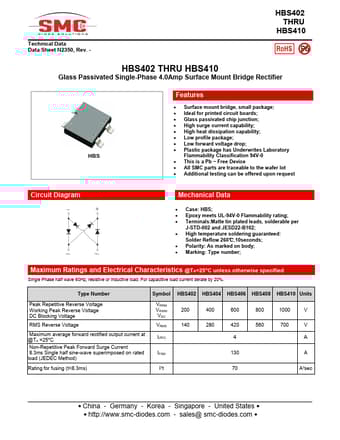

HBS406 Datasheet Preview Page 2 HBS406 Datasheet Preview Page 3

Datasheet Details

Part number:

HBS406, HBS402

Manufacturer:

SMC Diode

File Size:

557.81 KB

Description:

Single-phase 4.0amp surface mount bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: HBS406, HBS402.
Please refer to the document for exact specifications by model.
