D4558

Dual Operational Amplifier

D4558 Features

* No frequency Compensation Required No latch-up Large common mode and differential voltage range Parameter tracking over temperature range Gain and phase match between amplifiers Internally frequency compensated Low noise input transistors SOP8/ DIP8 PKG Out

D4558 General Description

The D4558 devices is a monolithic integrated circuit designed for dual operational amplifier. The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short-circuit protected and the internal frequency compen.

D4558 Datasheet (375.34 KB)

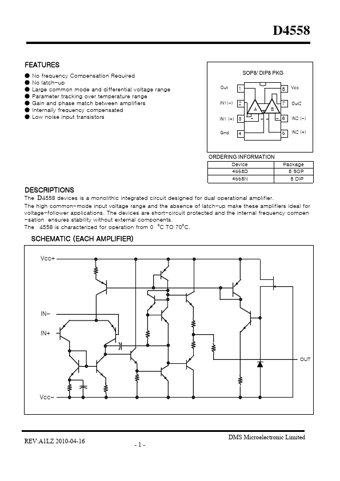

Preview of D4558 PDF

Datasheet Details

Part number:

D4558

Manufacturer:

DMS Microelectronic

File Size:

375.34 KB

Description:

Dual operational amplifier.
