MSB301 Glass passivated Recovery Bridge Rectifiers

MSB301 Description

MSB301-MSB307 Glass passivated Recovery Bridge Rectifiers General .
Single Phase 3. The plastic package carries Underwriters Laboratory.

MSB301 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Idea for printed circuit board
* Glass passivated Junction chip
* RoHS Compliant
* Low reverse leakage
* High forward surge current capability
* High temp

📥 Download Datasheet

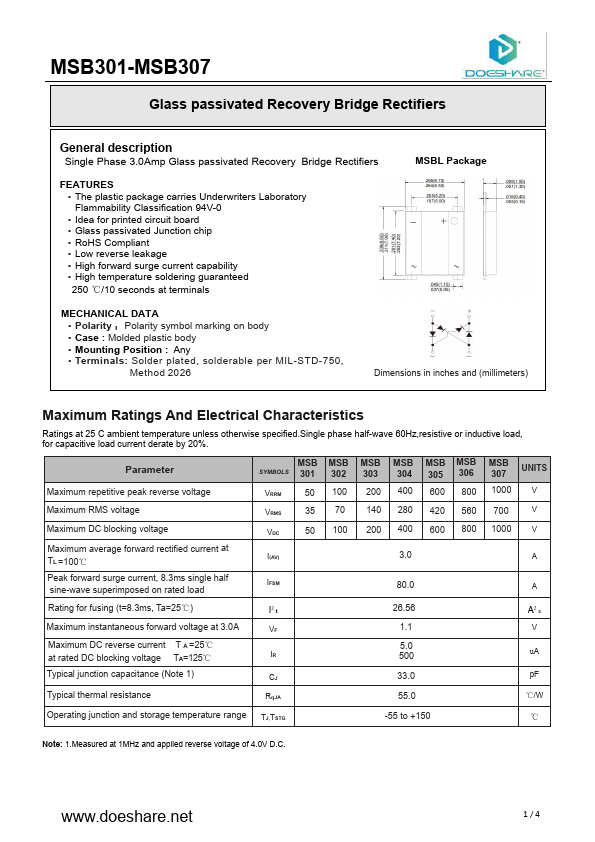

Preview of MSB301 PDF

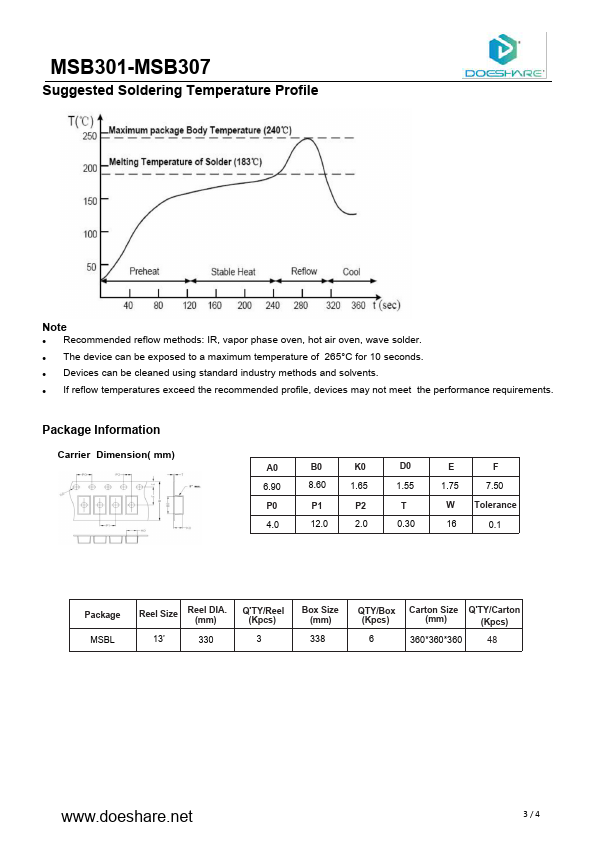

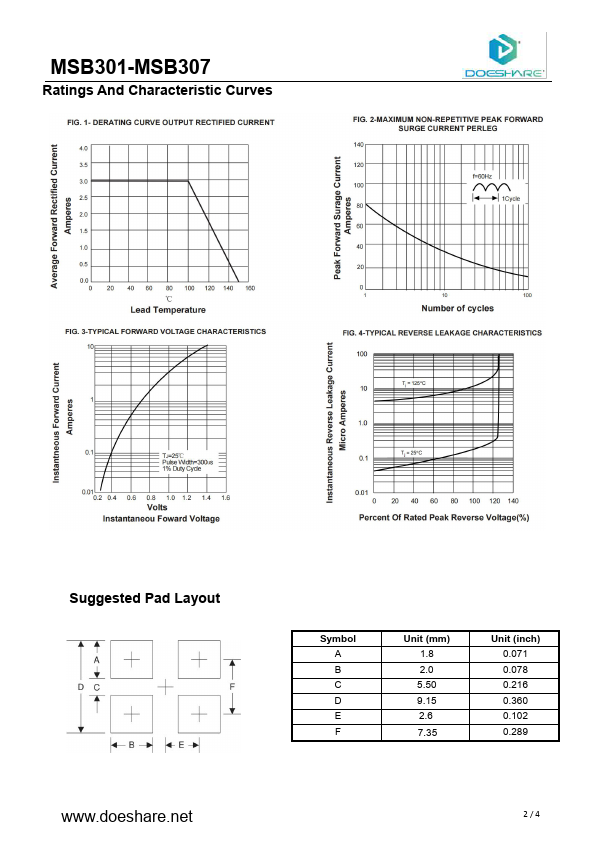

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSB301
Manufacturer
DOESHARE
File Size
574.14 KB
Datasheet
MSB301-DOESHARE.pdf
Description
Glass passivated Recovery Bridge Rectifiers
