Datasheet Details
Part number:
MSB302, MSB301-E
Manufacturer:
E-CMOS
File Size:
559.64 KB
Description:
Single-Phase Bridge Rectifier
Note:
This datasheet PDF includes multiple part numbers: MSB302, MSB301-E.
Please refer to the document for exact specifications by model.

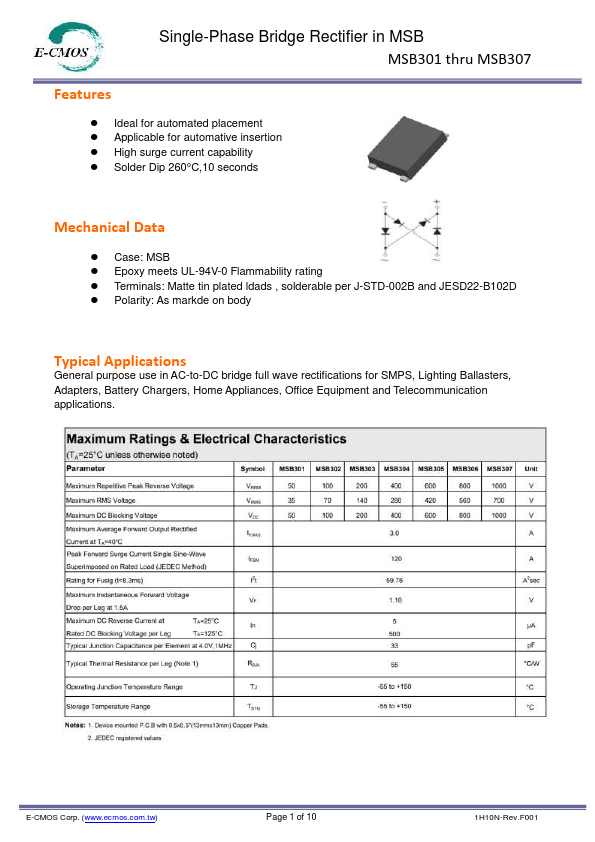

Features
* Ideal for automated placement
* Applicable for automative insertion
* High surge current capability
* Solder Dip 260°C,10 seconds Mechanical Data
* Case: MSB
* Epoxy meets UL-94V-0 Flammability rating
* Terminals: Matte tin plated ldads , solderable per J-STD-002B and J
