MSB305, MSB301-E Single-Phase Bridge Rectifier

E-CMOS

Description

Single-Phase Bridge Rectifier in MSB MSB301 thru MSB307 .

📥 Download Datasheet

MSB305 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSB305, MSB301-E. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MSB305, MSB301-E
Manufacturer: E-CMOS
File Size: 559.64 KB
Datasheet: MSB301-E-CMOS.pdf
Description: Single-Phase Bridge Rectifier
Note: This datasheet PDF includes multiple part numbers: MSB305, MSB301-E.
Please refer to the document for exact specifications by model.

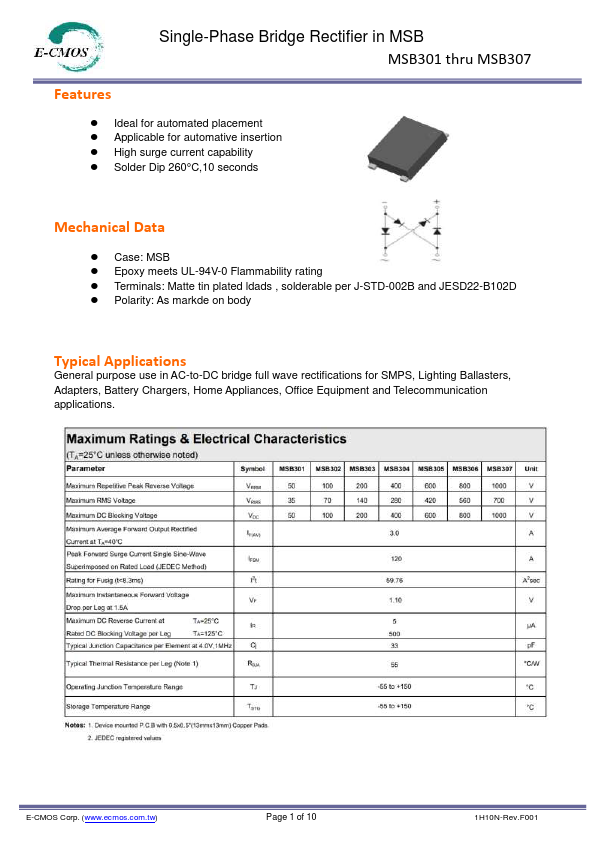

Features

* Ideal for automated placement
* Applicable for automative insertion
* High surge current capability
* Solder Dip 260°C,10 seconds Mechanical Data
* Case: MSB
* Epoxy meets UL-94V-0 Flammability rating
* Terminals: Matte tin plated ldads , solderable per J-STD-002B and J

Applications

* General purpose use in AC-to-DC bridge full wave rectifications for SMPS, Lighting Ballasters, Adapters, Battery Chargers, Home Appliances, Office Equipment and Telecommunication applications. E-CMOS Corp. (www. ecmos. com. tw) Page 1 of 10 1H10N-Rev. F001 Single-Phase Bridge Rectifier in MSB MSB301
