DW8525 High Power LED Driver

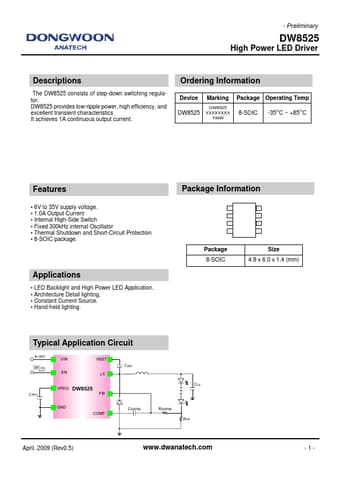

📥 Download Datasheet  Datasheet Preview Page 1

Description

- Preliminary DW8525 High Power LED Driver .
The DW8525 consists of step-down switching regulator.

📥 Download Datasheet

Preview of DW8525 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DW8525
Manufacturer
DONGWOON
File Size
223.28 KB
Datasheet
DW8525-DONGWOON.pdf
Description
High Power LED Driver

Features

* 6V to 35V supply voltage.
* 1.0A Output Current
* Internal High-Side Switch
* Fixed 300kHz internal Oscillator
* Thermal Shutdown and Short-Circuit Protection

Applications

* LED Backlight and High Power LED Application.
* Architecture Detail lighting.
* Constant Current Source.
* Hand-held lighting. Package Information Package 8-SOIC Size 4.9 x 6.0 x 1.4 (mm) Typical Application Circuit April. 2009 (Rev0.5) www. dwanatech. com -1-
