DW8501

High Power LED Driver

DW8501 Features

* Package Information

* Constant output current invariant to supply and load voltage change

* 5V to 40V supply voltage

* Up

DW8501 General Description

The DW8501 is an instant On/Off LED driver for high power LED applications. At DW8501 output stage, one regulated current port is designed to provide a uniform and constant current sink for driving LEDs within a large range of VF variations. DW8501 easily provides users a consistent current source..

DW8501 Datasheet (1.02 MB)

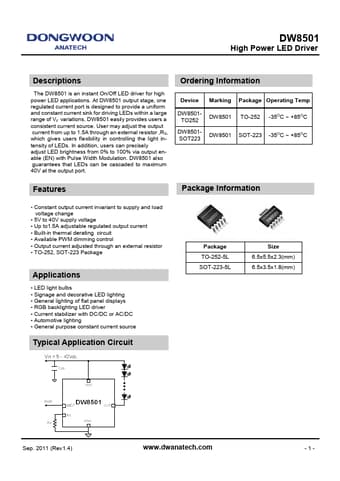

Preview of DW8501 PDF

Datasheet Details

Part number:

DW8501

Manufacturer:

DONGWOON

File Size:

1.02 MB

Description:

High power led driver.
