1N3942G Datasheet - DSI

1N3942G DIODE

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 1000.0 V 1160.0 V empty A 2.0 A 6.5 A 70.0 A empty W 70.0 °C/W 175.0 °C NO. TYPE empty empty CASE empty empty 1N3942G SILICON CONTROLLED AVALANCHE SOD-57 empty empty PERFORMANCE .

1N3942G Datasheet (33.60 KB)

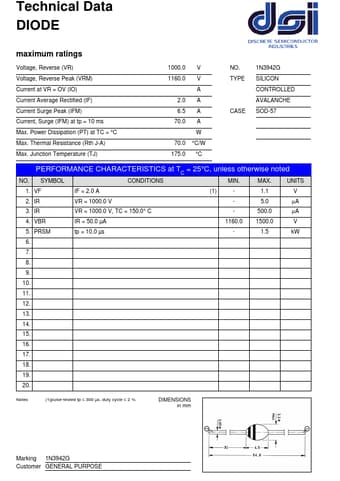

Preview of 1N3942G PDF

Datasheet Details

Part number:

1N3942G

Manufacturer:

DSI

File Size:

33.60 KB

Description:

Diode.
