1N5550 DIODE

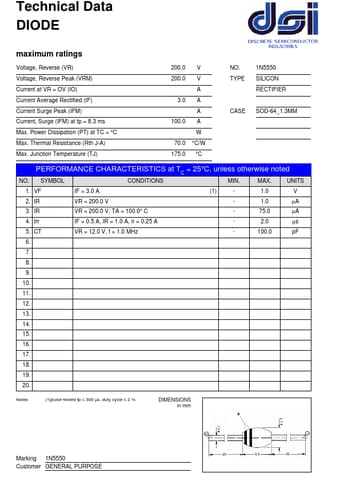

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 8.3 ms Max. Power Dissipation (PT) at TC = °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 200.0 V 200.0 V empty A 3.0 A empty A 100.0 A empty W 70.0 °C/W 175.0 °C NO. TYPE empty empty CASE empty empty 1N5550 SILICON RECTIFIER empty SOD-64_1.3MM empty empty PERFORMAN.

1N5550-DSI.pdf

1N5550 Datasheet Preview — Preview of 1N5550 PDF

Datasheet Details

Part number:

1N5550

Manufacturer:

DSI

File Size:

51.60 KB

Description:

Diode.
