1N5615-M - DIODE

📥 Download Datasheet

Datasheet preview – 1N5615-M

Datasheet Details

Part number 1N5615-M
Manufacturer DSI
File Size 33.60 KB
Description DIODE
Datasheet download datasheet 1N5615-M Datasheet
Additional preview pages of the 1N5615-M datasheet.

📁 Similar Datasheet

  • 1N5615 - GLASS PASSIVATED FAST SWITCHING RECTIFIER (General Semiconductor)
  • 1N5615 - VOIDLESS-HERMETICALLY SEALED FAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5615DUS - Fast Recovery Rectifier (Sensitron)
  • 1N5615GP - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER (General Semiconductor)
  • 1N5615GP - Glass Passivated Junction Fast Switching Rectifier (Vishay)
  • 1N5610 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1N5610 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5611 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1N5611 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5612 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
Other Datasheets by DSI

Full PDF Text Transcription

Click to expand full text

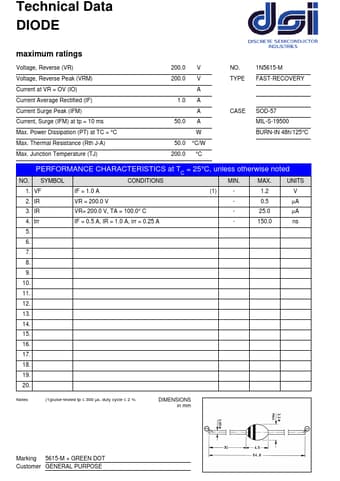

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 200.0 V 200.0 V empty A 1.0 A empty A 50.0 A empty W 50.0 °C/W 200.0 °C NO. TYPE empty empty CASE empty empty 1N5615-M FAST-RECOVERY empty empty SOD-57 MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted C NO. SYMBOL CONDITIONS MIN. MAX. UNITS 1. VF IF = 1.0 A (1) - 1.2 V 2. IR VR = 200.0 V - 0.5 µA 3. IR VR= 200.0 V, TA = 100.0° C - 25.0 µA 4. trr IF = 0.5 A, IR = 1.0 A, irr = 0.25 A - 150.0 ns 5. 6. 7. 8.
