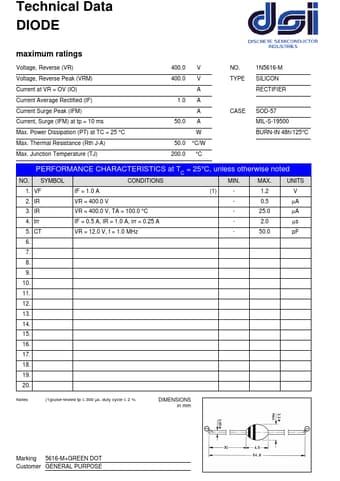

Datasheet preview – 1N5616-M

Datasheet Details

Part number 1N5616-M
Manufacturer DSI
File Size 33.66 KB
Description DIODE
Datasheet download datasheet 1N5616-M Datasheet
Additional preview pages of the 1N5616-M datasheet.

📁 Similar Datasheet

  • 1N5616 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS (EIC)
  • 1N5616 - STANDARD RECOVERY RECTIFIERS (Digitron Semiconductors)
  • 1N5616 - RECTIFIER (SEMTECH)
  • 1N5616 - GLASS PASSIVATED MEDIUM-SWITCHING JUNCTION RECTIFIER (General Semiconductor)
  • 1N5616 - STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5616 - GLASS PASSIVATED SILICON RECTIFIERS (CENTRAL SEMICONDUCTOR)
  • 1N5616US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER (Sensitron)
  • 1N5616US - (1N5614US - 1N5622US) VOIDLESS-HERMETICALLY-SEALED SURFACE MOUNT STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5610 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1N5610 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
Other Datasheets by DSI

Full PDF Text Transcription

Click to expand full text
Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = 25 °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 400.0 V 400.0 V empty A 1.0 A empty A 50.0 A empty W 50.0 °C/W 200.0 °C NO. TYPE empty empty CASE empty empty 1N5616-M SILICON RECTIFIER empty SOD-57 MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted C NO. SYMBOL CONDITIONS MIN. MAX. UNITS 1. VF IF = 1.0 A (1) - 1.2 V 2. IR VR = 400.0 V - 0.5 µA 3. IR VR = 400.0 V, TA = 100.0 °C - 25.0 µA 4. trr IF = 0.5 A, IR = 1.0 A, irr = 0.25 A - 2.0 µs 5. CT VR = 12.
