1N5612, 1N5610 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

1N5612 Description

www.eicsemi.com 1N5610 - 1N5613 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR VWM : 30.5 -175 Volts PPP : 1500 Watts .

1N5612 Features

* :
* Peak pulse power: 1500W at 10/1000 μs
* Extensive rang in Working Peak "Standoff" Voltage (VWM) from 30.5 to 175 V
* High surge current
* Excellent robust construction
* Pb / RoHS Free MECHANICAL DATA
* Case : DO-201 Molded plastic
* Epoxy : UL94V-O rate flame retarda

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5612, 1N5610. Please refer to the document for exact specifications by model.

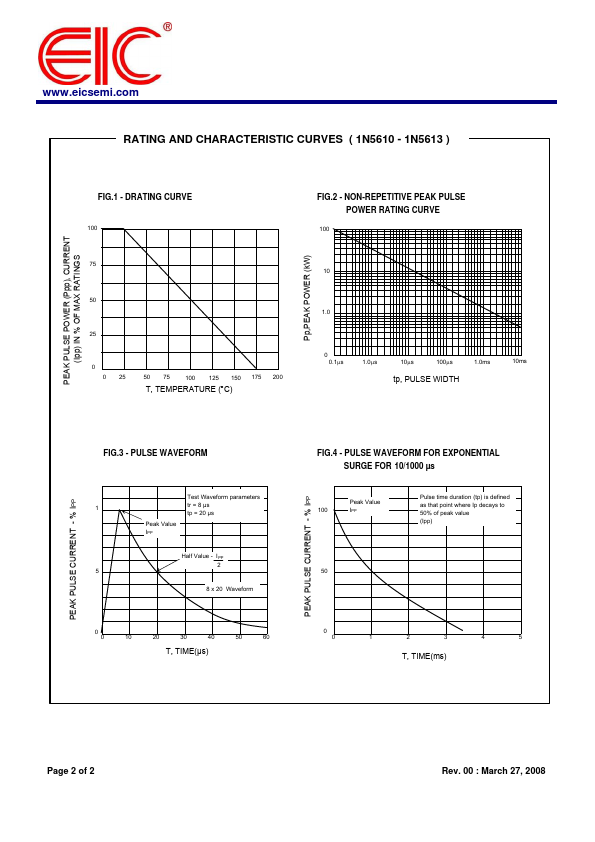

datasheet Preview Page 2

Datasheet Details

Part number
1N5612, 1N5610
Manufacturer
EIC
File Size
82.63 KB
Datasheet
1N5610-EIC.pdf
Description
UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: 1N5612, 1N5610.
Please refer to the document for exact specifications by model.
