1N5614US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER

Datasheet Summary

Description

A 200/400/600/800/1000 VOLT, 1.0 AMP, AXIAL LEAD/SURFACE MOUNT 2000 NS GLASS RECTIFIER.

📥 Download Datasheet

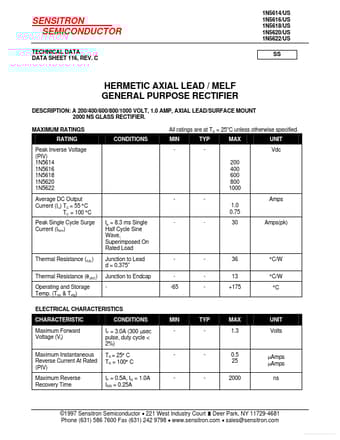

Datasheet preview – 1N5614US

Datasheet Details

Part number 1N5614US
Manufacturer Sensitron
File Size 68.07 KB
Description (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
Datasheet download datasheet 1N5614US Datasheet
Additional preview pages of the 1N5614US datasheet.

📁 Similar Datasheet

  • 1N5614US - (1N5614US - 1N5622US) VOIDLESS-HERMETICALLY-SEALED SURFACE MOUNT STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5614 - STANDARD RECOVERY RECTIFIERS (Digitron Semiconductors)
  • 1N5614 - RECTIFIER (SEMTECH)
  • 1N5614 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS (EIC)
  • 1N5614 - GLASS PASSIVATED MEDIUM-SWITCHING JUNCTION RECTIFIER (General Semiconductor)
  • 1N5614 - STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5614 - DIODE (DSI)
  • 1N5614 - GLASS PASSIVATED SILICON RECTIFIERS (CENTRAL SEMICONDUCTOR)
  • 1N5610 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1N5610 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
Other Datasheets by Sensitron
  • 1N5615DUS - Fast Recovery Rectifier
  • 1N5616US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
  • 1N5618US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
  • 1N5620US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
  • 1N5622US - (1N56xxUS) HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER
  • 1N5550 - HIGH CURRENT AXIAL LEAD RECTIFIERS
  • 1N5551 - HIGH CURRENT AXIAL LEAD RECTIFIERS
  • 1N5552 - HIGH CURRENT AXIAL LEAD RECTIFIERS

Full PDF Text Transcription

Click to expand full text
SENSITRON SEMICONDUCTOR TECHNICAL DATA DATA SHEET 116, REV. C 1N5614/US 1N5616/US 1N5618/US 1N5620/US 1N5622/US SS HERMETIC AXIAL LEAD / MELF GENERAL PURPOSE RECTIFIER DESCRIPTION: A 200/400/600/800/1000 VOLT, 1.0 AMP, AXIAL LEAD/SURFACE MOUNT 2000 NS GLASS RECTIFIER. MAXIMUM RATINGS RATING Peak Inverse Voltage (PIV) 1N5614 1N5616 1N5618 1N5620 1N5622 Average DC Output Current (Io) TC = 55 °C TC = 100 °C Peak Single Cycle Surge Current (Ifsm) tp = 8.3 ms Single Half Cycle Sine Wave, Superimposed On Rated Load Junction to Lead d = 0.375” Junction to Endcap CONDITIONS All ratings are at TA = 25oC unless otherwise specified. MIN TYP 200 400 600 800 1000 1.0 0.75 30 Amps(pk) Amps MAX UNIT Vdc Thermal Resistance (θJL) Thermal Resistance (θJEC) Operating and Storage Temp.
