1N5613 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR

This page provides the datasheet information for the 1N5613, a member of the 1N5610 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR family.

Datasheet Summary

Features

  • :.
  • Peak pulse power: 1500W at 10/1000 μs.
  • Extensive rang in Working Peak "Standoff" Voltage (VWM) from 30.5 to 175 V.
  • High surge current.
  • Excellent robust construction.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – 1N5613

Datasheet Details

Part number 1N5613
Manufacturer EIC
File Size 82.63 KB
Description UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 1N5613 Datasheet

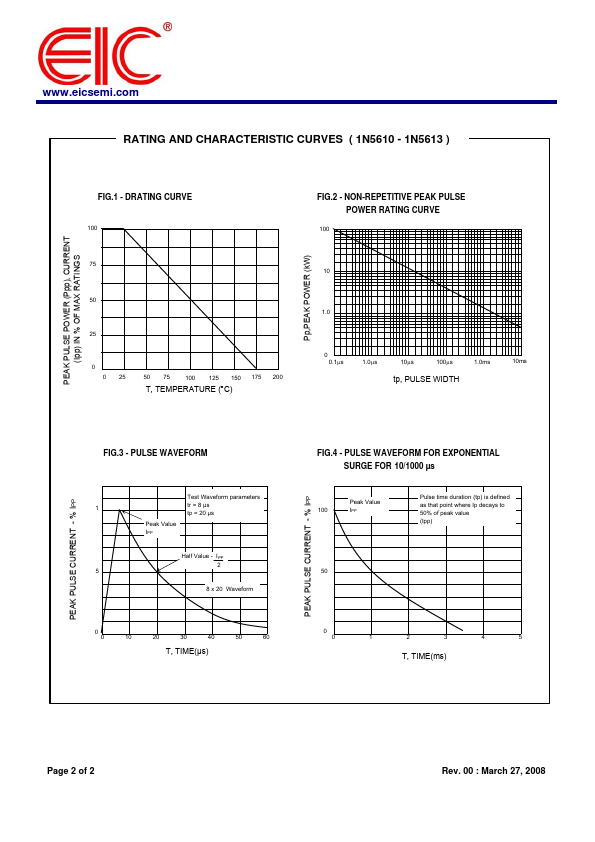

Additional preview pages of the 1N5613 datasheet.

📁 Similar Datasheet

  • 1N5613 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5610 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5611 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5612 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5614 - STANDARD RECOVERY RECTIFIERS (Digitron Semiconductors)
  • 1N5614 - RECTIFIER (SEMTECH)
  • 1N5614 - GLASS PASSIVATED MEDIUM-SWITCHING JUNCTION RECTIFIER (General Semiconductor)
  • 1N5614 - STANDARD RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5614 - DIODE (DSI)
  • 1N5614 - GLASS PASSIVATED SILICON RECTIFIERS (CENTRAL SEMICONDUCTOR)
Other Datasheets by EIC
  • 1N5610 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
  • 1N5611 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
  • 1N5612 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR
  • 1N5614 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N5616 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N5618 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N5620 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
  • 1N5622 - GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

Full PDF Text Transcription

Click to expand full text

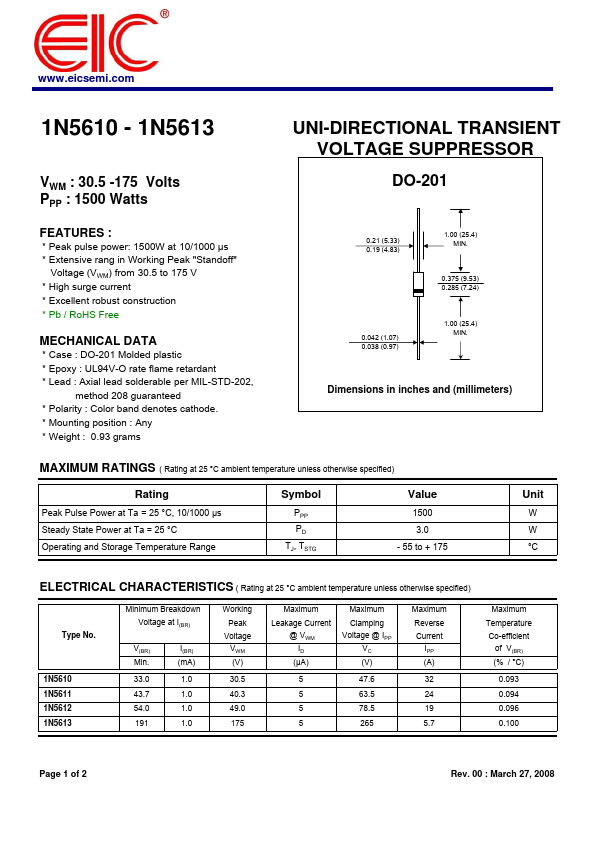

www.eicsemi.com 1N5610 - 1N5613 UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR VWM : 30.5 -175 Volts PPP : 1500 Watts FEATURES : * Peak pulse power: 1500W at 10/1000 μs * Extensive rang in Working Peak "Standoff" Voltage (VWM) from 30.5 to 175 V * High surge current * Excellent robust construction * Pb / RoHS Free MECHANICAL DATA * Case : DO-201 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, method 208 guaranteed * Polarity : Color band denotes cathode. * Mounting position : Any * Weight : 0.93 grams DO-201 0.21 (5.33) 0.19 (4.83) 0.042 (1.07) 0.038 (0.97) 1.00 (25.4) MIN. 0.375 (9.53) 0.285 (7.24) 1.00 (25.4) MIN.
