1N5616, 1N5614 GLASS PASSIVATED JUNCTION SILICON RECTIFIERS

1N5616 Description

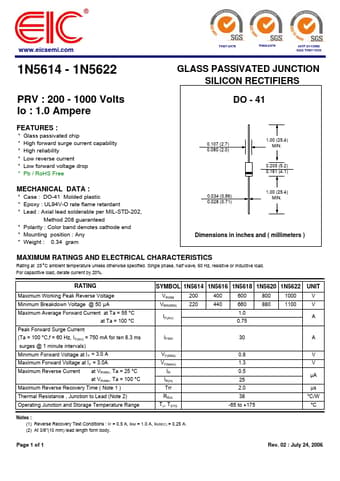

www.eicsemi.com TH97/2478 TH09/2479 IATF 0113686 SGS TH07/1033 1N5614 - 1N5622 GLASS PASSIVATED JUNCTION SILICON RECTIFIERS PRV : 200 - 1000 Vol.

1N5616 Features

* :
* Glass passivated chip
* High forward surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 0.107 (2.7) 0.080 (2.0) 1.00 (25.4) MIN. 0.205 (5.2) 0.161 (4.1) MECHANICAL DATA :
* Case : DO-41 Molded plastic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5616, 1N5614. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
1N5616, 1N5614
Manufacturer
EIC
File Size
103.50 KB
Datasheet
1N5614-EIC.pdf
Description
GLASS PASSIVATED JUNCTION SILICON RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N5616, 1N5614.
Please refer to the document for exact specifications by model.
