1N5615GP - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

Datasheet Summary

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High temperature metallurgically bonded construction.
  • Glass passivated cavity-free junction.
  • Capable of meeting environmental standards of MIL-S-19500.
  • Fast switching for high efficiency.
  • 1.0 Ampere operation at TA=55°C with no thermal runaway.
  • High temperature soldering guaranteed: 350°C/10seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension N T.

📥 Download Datasheet

Datasheet preview – 1N5615GP

Datasheet Details

Part number 1N5615GP
Manufacturer General Semiconductor
File Size 63.87 KB
Description GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
Datasheet download datasheet 1N5615GP Datasheet
Additional preview pages of the 1N5615GP datasheet.

📁 Similar Datasheet

  • 1N5615GP - Glass Passivated Junction Fast Switching Rectifier (Vishay)
  • 1N5615 - VOIDLESS-HERMETICALLY SEALED FAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5615 - DIODE (DSI)
  • 1N5615-M - DIODE (DSI)
  • 1N5615DUS - Fast Recovery Rectifier (Sensitron)
  • 1N5610 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1N5610 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5611 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
  • 1N5611 - Voidless Hermetically Sealed Unidirectional Transient Voltage Suppressors (Microsemi)
  • 1N5612 - UNI-DIRECTIONAL TRANSIENT VOLTAGE SUPPRESSOR (EIC)
Other Datasheets by General Semiconductor
  • 1N5615 - GLASS PASSIVATED FAST SWITCHING RECTIFIER
  • 1N5614 - GLASS PASSIVATED MEDIUM-SWITCHING JUNCTION RECTIFIER
  • 1N5616 - GLASS PASSIVATED MEDIUM-SWITCHING JUNCTION RECTIFIER
  • 1N5617 - GLASS PASSIVATED FAST SWITCHING RECTIFIER
  • 1N5617GP - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
  • 1N5618 - GLASS PASSIVATED MEDIUM-SWITCHING JUNCTION RECTIFIER
  • 1N5619 - GLASS PASSIVATED FAST SWITCHING RECTIFIER
  • 1N5619GP - GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

Full PDF Text Transcription

Click to expand full text

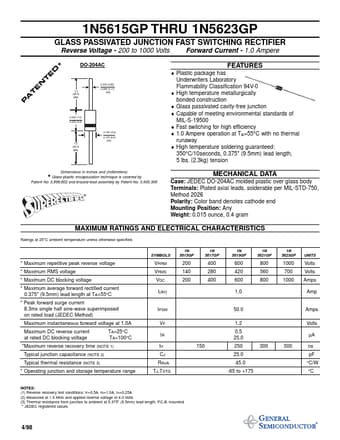

1N5615GP THRU 1N5623GP GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER Reverse Voltage - 200 to 1000 Volts D * DO-204AC Forward Current - 1.0 Ampere FEATURES ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ High temperature metallurgically bonded construction ♦ Glass passivated cavity-free junction ♦ Capable of meeting environmental standards of MIL-S-19500 ♦ Fast switching for high efficiency ♦ 1.0 Ampere operation at TA=55°C with no thermal runaway ♦ High temperature soldering guaranteed: 350°C/10seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension N T E 0.034 (0.86) 1.0 (25.4) MIN. 0.028 (0.71) DIA. P A T E 0.300 (7.6) 0.230 (5.8) 0.140 (3.6) 0.104 (2.6) DIA. 1.0 (25.4) MIN.
