1N5618-M Datasheet - DSI

1N5618-M DIODE

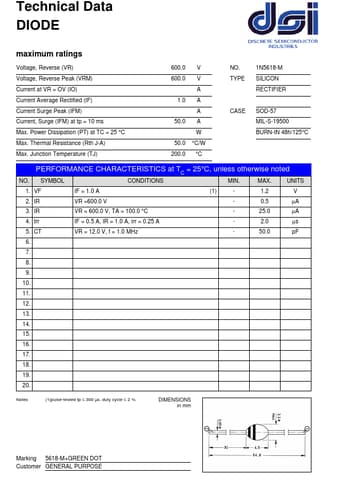

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IFM) Current, Surge (IFM) at tp = 10 ms Max. Power Dissipation (PT) at TC = 25 °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 600.0 V 600.0 V empty A 1.0 A empty A 50.0 A empty W 50.0 °C/W 200.0 °C NO. TYPE empty empty CASE empty empty 1N5618-M SILICON RECTIFIER empty SOD-57 MIL-S-19500 BURN-IN 48h/1.

1N5618-M-DSI.pdf

1N5618-M Datasheet Preview — Preview of 1N5618-M PDF

Datasheet Details

Part number:

1N5618-M

Manufacturer:

DSI

File Size:

33.66 KB

Description:

Diode.
