1N5811-M - DIODE

📥 Download Datasheet

Datasheet preview – 1N5811-M

Datasheet Details

Part number 1N5811-M
Manufacturer DSI
File Size 51.44 KB
Description DIODE
Datasheet download datasheet 1N5811-M Datasheet
Additional preview pages of the 1N5811-M datasheet.

📁 Similar Datasheet

  • 1N5811 - Superfast Rectifier Diodes (Micross)
  • 1N5811 - RECTIFIERS (Solid State)
  • 1N5811 - VOID-LESS HERMETICALLY SEALED ULTRAFAST RECOVERY GLASS RECTIFIERS (Microsemi)
  • 1N5811 - SUPERFAST RECTIFIER DIOSE (Semtech)
  • 1N5811 - Rectifier Diode (MA-COM)
  • 1N5811 - ULTRAFAST RECOVERY RECTIFIER DIODES (EIC)
  • 1N5811 - HIGH EFFICIENCY RECTIFIERS (Digitron Semiconductors)
  • 1N5811 - SINTERED GLASS JUNCTION FAST AVALANCHE RECTIFIER (Gulf Semiconductor)
  • 1N5811 - 6 AMP HYPERFAST RECOVERY RECTIFIER (SSDI)
  • 1N5811C - Superfast Rectifier Diode (Micross)
Other Datasheets by DSI

Full PDF Text Transcription

Click to expand full text

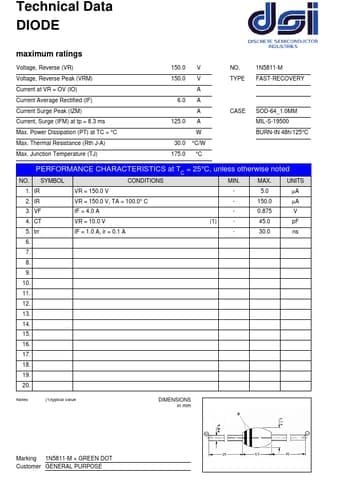

Technical Data DIODE maximum ratings Voltage, Reverse (VR) Voltage, Reverse Peak (VRM) Current at VR = OV (IO) Current Average Rectified (IF) Current Surge Peak (IZM) Current, Surge (IFM) at tp = 8.3 ms Max. Power Dissipation (PT) at TC = °C Max. Thermal Resistance (Rth J-A) Max. Junction Temperature (TJ) 150.0 V 150.0 V empty A 6.0 A empty A 125.0 A empty W 30.0 °C/W 175.0 °C NO. TYPE empty empty CASE empty empty 1N5811-M FAST-RECOVERY empty empty SOD-64_1.0MM MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted C NO. SYMBOL CONDITIONS MIN. MAX. UNITS 1. IR VR = 150.0 V - 5.0 µA 2. IR VR = 150.0 V, TA = 100.0° C - 150.0 µA 3. VF IF = 4.0 A - 0.875 V 4. CT VR = 10.0 V (1) - 45.0 pF 5. trr IF = 1.0 A, ir = 0.
