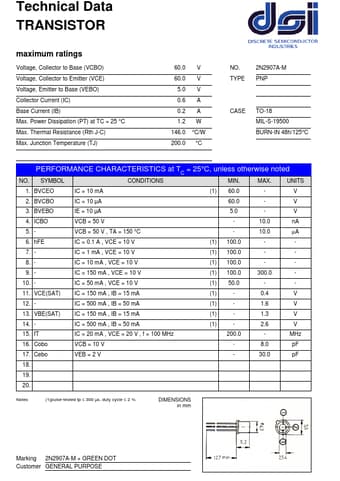

2N2907A-M Datasheet (DSI)

2N2907A-M, TRANSISTOR

Technical Data TRANSISTOR maximum ratings Voltage, Collector to Base (VCBO) Voltage, Collector to Emitter (VCE) Voltage, Emitter to Base (VEBO) Collector Current (IC) Base Current (IB) Max.

Power Dissipation (PT) at TC = 25 °C Max.

Thermal Resistance (Rth J-C) Max.

Junction Temperature (TJ) empty 60.0 V 60.0 V 5.0 V 0.6 A 0.2 A 1.2 W 146.0 °C/W 200.0 °C empty empty NO.

TYPE empty empty CASE empty empty 2N2907A-M PNP empty empty TO-18 MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTIC
