2N2222A-M Datasheet - DSI

2N2222A-M TRANSISTOR

Technical Data TRANSISTOR maximum ratings Voltage, Collector to Base (VCBO) Voltage, Collector to Emitter (VCE) Voltage, Emitter to Base (VEBO) Collector Current (IC) Base Current (IB) Max. Power Dissipation (PT) at TC = 25 °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ) empty 75.0 V 40.0 V 6.0 V 0.8 A 0.08 A 1.8 W 84.0 °C/W 200.0 °C empty empty NO. TYPE empty empty CASE empty empty 2N2222A-M NPN empty empty TO-18 MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTIC.

2N2222A-M Datasheet (62.44 KB)

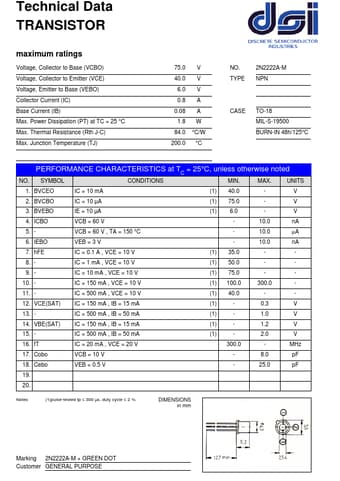

2N2222A-M Datasheet Preview — Preview of 2N2222A-M PDF

Datasheet Details

Part number:

2N2222A-M

Manufacturer:

DSI

File Size:

62.44 KB

Description:

Transistor.
