2N2222AHR 50V 0.8A Hi-Rel NPN transistor

2N2222AHR Description

2N2222AHR Datasheet Rad-Hard 50 V, 0.8 A NPN transistor 3 1 2 LCC-3 3 4 1 2 UB Pin 4 in UB is connected to the metallic lid.C (3) (2) B E (1) .
The 2N2222AHR is a bipolar transistor able to operate under severe environment conditions and radiation exposure providing high immunity to total ioni.

2N2222AHR Features

* Vceo IC(max. ) 50 V
* Hermetic packages
* ESCC qualified

2N2222AHR Applications

* and suitable for low current and high precision circuits such preamplifiers, oscillators, current mirror configuration. In case of discrepancies between this datasheet and the relevant agency specification, the latter takes precedence. Product summary Part-number 2N2222ARUBx 2N2222AUBx SOC2222ARHR

📥 Download Datasheet

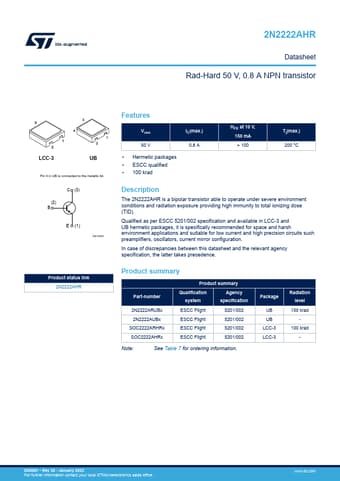

Preview of 2N2222AHR PDF
datasheet Preview Page 2 datasheet Preview Page 3
