2N2221, 2N2218 HIGH-SPEED SWITCHES

STMicroelectronics

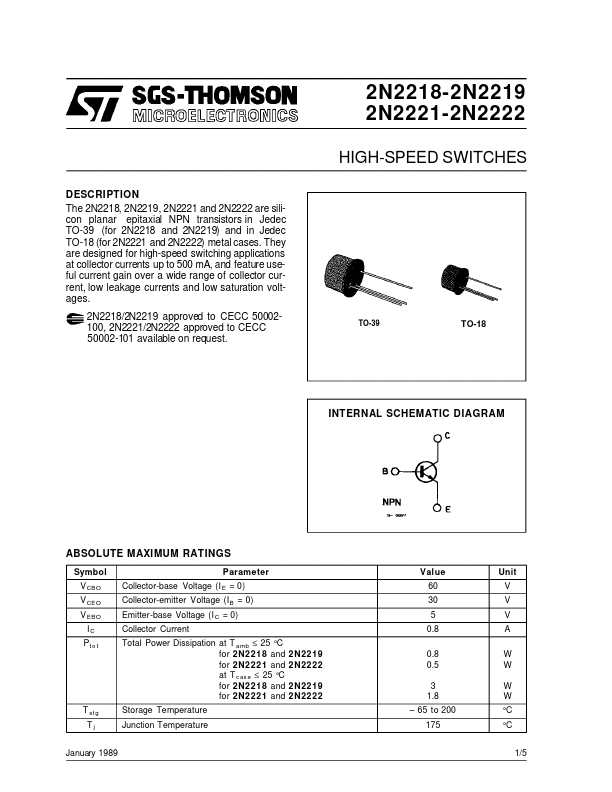

Description

.
The 2N2218, 2N2219, 2N2221 and 2N2222 are silicon planar epitaxial NPN transistors in Jedec TO-39 (for 2N2218 and 2N2219) and in Jedec TO-18 (for 2N22.

📥 Download Datasheet

2N2221 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N2221, 2N2218. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 2N2221, 2N2218
Manufacturer: STMicroelectronics ↗
File Size: 70.02 KB
Datasheet: 2N2218-STMicroelectronics.pdf
Description: HIGH-SPEED SWITCHES
Note: This datasheet PDF includes multiple part numbers: 2N2221, 2N2218.
Please refer to the document for exact specifications by model.
