2N2218 HIGH-SPEED SWITCHES

📥 Download Datasheet  Datasheet Preview Page 1

Description

.
The 2N2218, 2N2219, 2N2221 and 2N2222 are silicon planar epitaxial NPN transistors in Jedec TO-39 (for 2N2218 and 2N2219) and in Jedec TO-18 (for 2N22.

📥 Download Datasheet

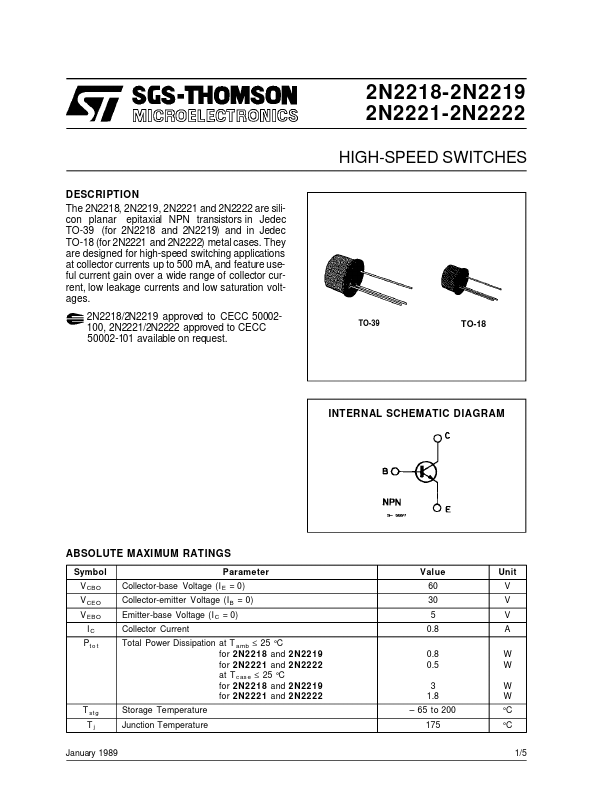

Preview of 2N2218 PDF

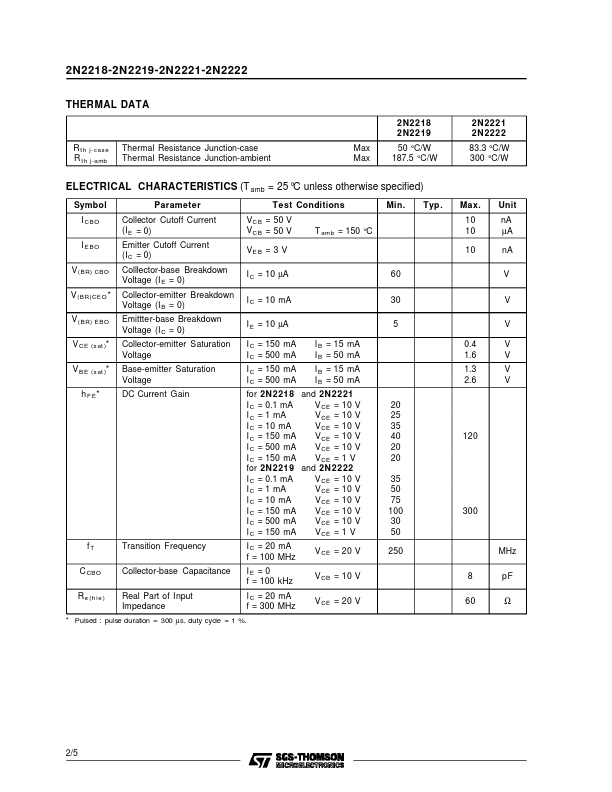

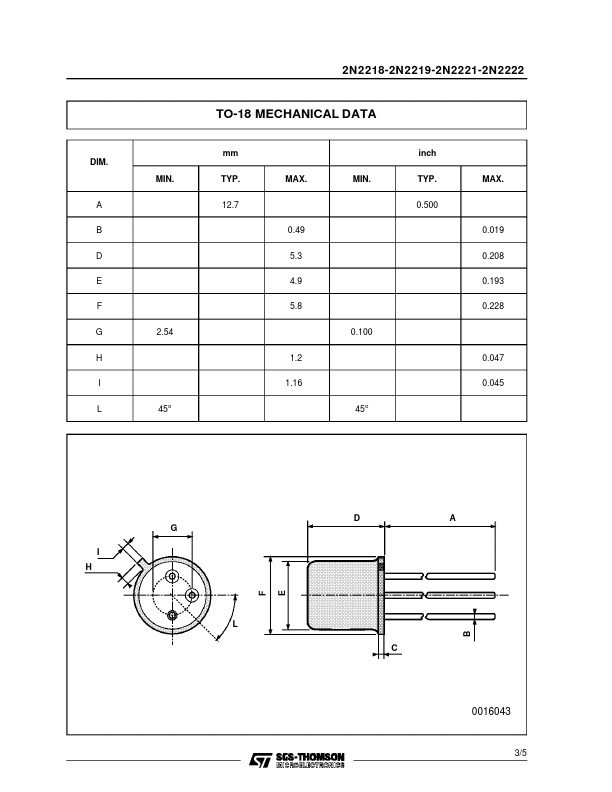

datasheet Preview Page 2 datasheet Preview Page 3
