2N6901-M Datasheet - DSI

2N6901-M TRANSISTOR

Technical Data TRANSISTOR maximum ratings VDS VDG VGS ID IDM IG Max. Power Dissipation (PT) at TC = 25 °C Max. Thermal Resistance (Rth J-C) Max. Junction Temperature (TJ) 100.0 V 100.0 V ± 10.0 V 1.69 A 5.0 A empty A 8.33 W 15.0 °C/W 150.0 °C NO. TYPE empty empty CASE empty empty 2N6901-M V-MOS LOGIC LEVEL N-CHANNEL TO-39 MIL-S-19500 BURN-IN 48h/125°C PERFORMANCE CHARACTERISTICS at T = 25°C, unless otherwise noted C NO. SYMBOL CONDITIONS MIN. MAX. UNITS 1. BVDSS ID = 1 mA .

2N6901-M Datasheet (78.36 KB)

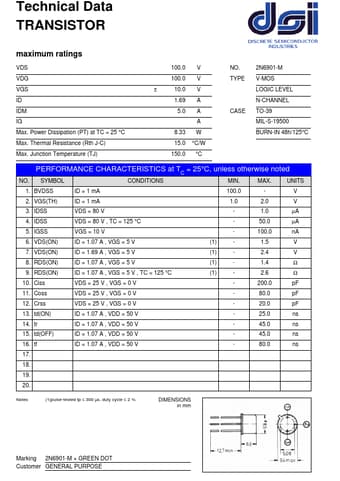

2N6901-M Datasheet Preview — Preview of 2N6901-M PDF

Datasheet Details

Part number:

2N6901-M

Manufacturer:

DSI

File Size:

78.36 KB

Description:

Transistor.
