www.dwo.net.cn

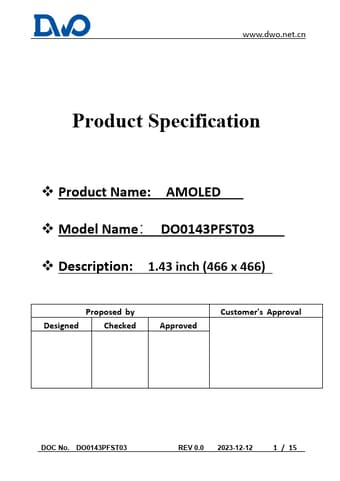

Product Specification
❖ Product Name: AMOLED ❖ Model Name： DO0143PFST03 ❖ Description: 1.43 inch (466 x 466)
Proposed by
Designed
Checked
Approved
Customer's Approval
DOC No. DO0143PFST03
REV 0.0 2023-12-12
1 / 15
Document Revision History
Rev. No. Date
0.0 2023-12-12
Contents -.Initial issue
www.dwo.net.cn
Remark Preliminary
DOC No. DO0143PFST03
REV 0.0 2023-12-12
2 / 15
1.General Description:
www.dwo.net.cn
■ Driving Mode: Active Matrix.
■ Color Mode: Full Color (16.7M color)
■ Display Format: 1.8" (368 x 448)
■ Display Driver IC : SH8601 or Compatible
■ Touch Driver IC : FT3168 or Compatible
■ Display Interface: SPI 3-wire / QSPI
■ Touch Interface: IIC [ Slave Addr A[6:0]---0X38]
■ Application: Handheld & PDA
■ RoHS Compatible
2.
