DCR1560F26 Phase Control Thyristor

📥 Download Datasheet Datasheet Preview Page 1

Description

Replaces DS6041-1 DCR1560F26 Phase Control Thyristor DS6041-2 June 2019 (LN38861) .

📥 Download Datasheet

Preview of DCR1560F26 PDF

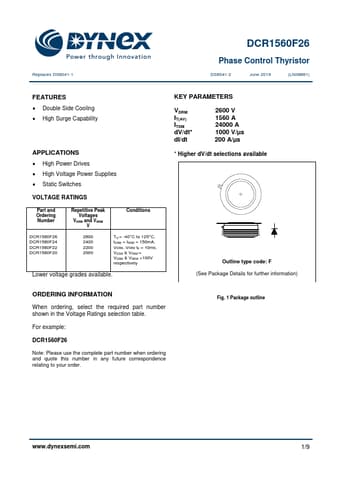

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DCR1560F26
Manufacturer
DYNEX
File Size
644.41 KB
Datasheet
DCR1560F26-DYNEX.pdf
Description
Phase Control Thyristor

Features

* Double Side Cooling

Applications

* High Power Drives
* High Voltage Power Supplies
* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR1560F26 DCR1560F24 DCR1560F22 DCR1560F20 2600 2400 2200 2000 Tvj = -40°C to 125°C, IDRM = IRRM = 150mA, VDRM, VRRM tp
