DCR1970X18 Phase Control Thyristor

📥 Download Datasheet  Datasheet Preview Page 1

Description

Replaces DS6029-2 DCR1970X18 Phase Control Thyristor DS6029-3 June 2019 (LN38849) .

📥 Download Datasheet

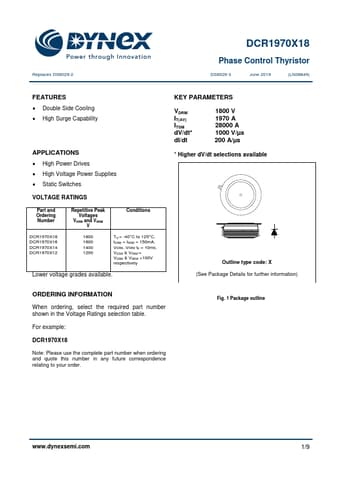

Preview of DCR1970X18 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DCR1970X18
Manufacturer
DYNEX
File Size
646.13 KB
Datasheet
DCR1970X18-DYNEX.pdf
Description
Phase Control Thyristor

Features

* Double Side Cooling

Applications

* High Power Drives
* High Voltage Power Supplies
* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR1970X18 DCR1970X16 DCR1970X14 DCR1970X12 1800 1600 1400 1200 Tvj = -40°C to 125°C, IDRM = IRRM = 150mA, VDRM, VRRM tp
