DCR750D24

Phase Control Thyristor

DCR750D24 Features

* Double Side Cooling

* High Surge Capability APPLICATIONS

* High Power Drives

* High Voltage Power Supplies

* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM V Conditions DCR750D24 DCR750D22 DCR750D20 2400 2200 2000 Tvj = -

DCR750D24 Datasheet (657.16 KB)

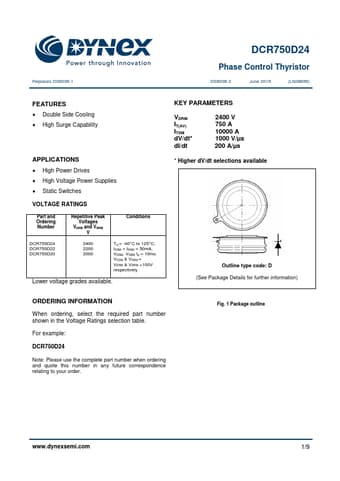

Preview of DCR750D24 PDF

Datasheet Details

Part number:

DCR750D24

Manufacturer:

DYNEX

File Size:

657.16 KB

Description:

Phase control thyristor.
