DCR750F85

Phase Control Thyristor

DCR750F85 Features

* Double Side Cooling

* High Surge Capability APPLICATIONS

* Medium Voltage Soft Starts

* High Voltage Power Supplies

* Static Switches VOLTAGE RATINGS Part and Ordering Number Repetitive Peak Voltages VDRM and VRRM (V) Conditions Tvj = -40°C to 125°C,

DCR750F85 Datasheet (1.25 MB)

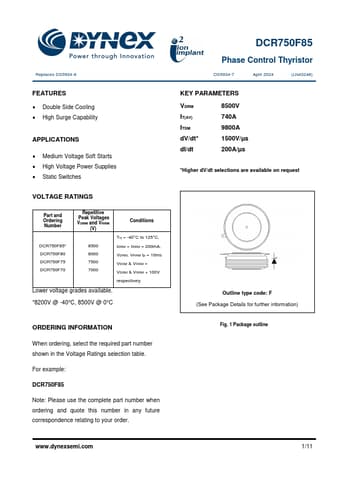

Preview of DCR750F85 PDF

Datasheet Details

Part number:

DCR750F85

Manufacturer:

DYNEX

File Size:

1.25 MB

Description:

Phase control thyristor.
