SBR520, SBR560, (SBR520 - SBR5100) CURRENT 5.0 AMPERES VOLTAGE 20 TO 100 VOLTS

www.DataSheet4U.com SBR520 THRU SBR5100 .

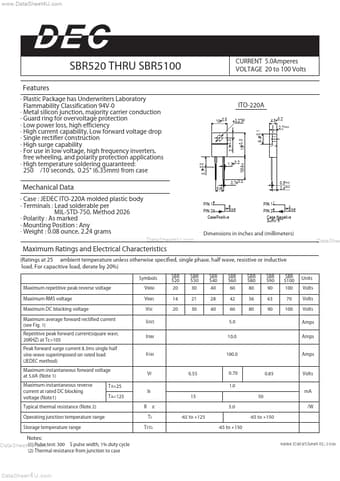

datasheet Preview Page 1 from Datasheet4u.com

SBR560_DaesanElectronics.pdf

SBR520 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBR520, SBR560. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBR520, SBR560

Manufacturer:

Daesan Electronics

File Size:

570.71 KB

Description:

(SBR520 - SBR5100) CURRENT 5.0 AMPERES VOLTAGE 20 TO 100 VOLTS

Note:

This datasheet PDF includes multiple part numbers: SBR520, SBR560.
Please refer to the document for exact specifications by model.

Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* Single rectifi

Applications

* High temperature soldering guaranteed: 250¡É /10 seconds, 0.25" (6.35mm) from case CURRENT 5.0Amperes VOLTAGE 20 to 100 Volts ITO-220A 10 0.5 3.2 6.4 0.1 4.5 0.2 2.7 2.7 0.2 3.7 0.2 Mechanical Data
* Case : JEDEC ITO-220A molded plastic body
* Terminals : Lead solderable per MIL-ST
