SBR560 - SCHOTTKY BARRIER DIODE

SBR560 Description

www.DataSheet4U.com SBR520 THRU SBR5100 .

SBR560 Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* Single rectifi

SBR560 Applications

* High temperature soldering guaranteed: 250¡É /10 seconds, 0.25" (6.35mm) from case CURRENT 5.0Amperes VOLTAGE 20 to 100 Volts ITO-220A 10 0.5 3.2 6.4 0.1 4.5 0.2 2.7 2.7 0.2 3.7 0.2 Mechanical Data
* Case : JEDEC ITO-220A molded plastic body
* Terminals : Lead solderable per MIL-ST

📥 Download Datasheet

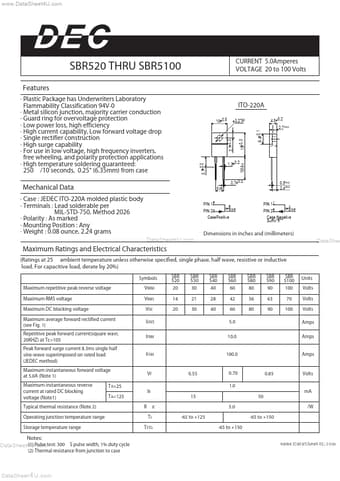

Preview of SBR560 PDF
