SR302, SR3100 Datasheet - Daesan Electronics

SR302, SR3100, (SR302 - SR3100) CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts

SR302 THRU SR3100 .

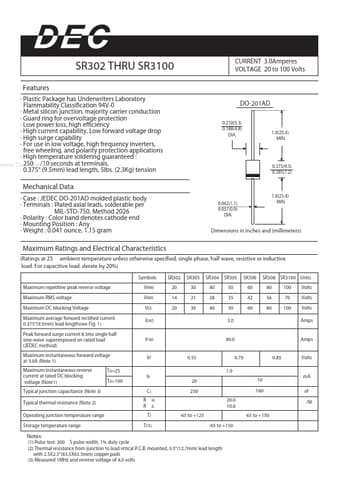

datasheet Preview Page 1 from Datasheet4u.com

SR3100_DaesanElectronics.pdf

SR302 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR302, SR3100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR302, SR3100

Manufacturer:

Daesan Electronics

File Size:

263.35 KB

Description:

(SR302 - SR3100) CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts

Note:

This datasheet PDF includes multiple part numbers: SR302, SR3100.
Please refer to the document for exact specifications by model.

Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* High surge cap

Applications

* High temperature soldering guaranteed : 250¡É /10 seconds at terminals, www. DataSheet4U. com 0.375" (9.5mm) lead length, 5lbs. (2.3Kg) tension CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts DO-201AD 0.210(5.3) 0.188(4.8) DIA. 1.0(25.4) MIN. 0.375(9.5) 0.285(7.2) Mechanical Data
* Case : JE
