SR303, SR3100 (SR302 - SR3100) CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts

SR303 Description

SR302 THRU SR3100 .

SR303 Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, Low forward voltage drop
* High surge cap

SR303 Applications

* High temperature soldering guaranteed : 250¡É /10 seconds at terminals, www. DataSheet4U. com 0.375" (9.5mm) lead length, 5lbs. (2.3Kg) tension CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts DO-201AD 0.210(5.3) 0.188(4.8) DIA. 1.0(25.4) MIN. 0.375(9.5) 0.285(7.2) Mechanical Data
* Case : JE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR303, SR3100. Please refer to the document for exact specifications by model.

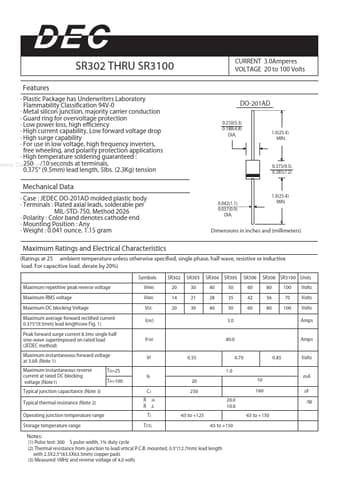

datasheet Preview Page 2

Datasheet Details

Part number
SR303, SR3100
Manufacturer
Daesan Electronics
File Size
263.35 KB
Datasheet
SR3100_DaesanElectronics.pdf
Description
(SR302 - SR3100) CURRENT 3.0Amperes VOLTAGE 20 to 100 Volts
Note
This datasheet PDF includes multiple part numbers: SR303, SR3100.
Please refer to the document for exact specifications by model.
