DS1500

Y2K Watchdog RTC

DS1500 Features

* BCD-Coded Century, Year, Month, Date, Day, Hours, Minutes, and Seconds with Automatic Leap-Year Compensation Valid Up to the Year 2100 Programmable Watchdog Timer and RTC Alarm Century Register; Y2K-Compliant RTC Automatic Battery Backup and Write Protection to External SRAM +5V Operation Prec

DS1500 General Description

The DS1500 is a full-function, year 2000-compliant real-time clock/calendar (RTC) with an alarm, watchdog timer, power-on reset, battery monitors, 256 bytes of on-board nonvolatile (NV) SRAM, NV control for backing up an external SRAM, and a 32.768kHz output. User access to all registers within the .

DS1500 Datasheet (351.11 KB)

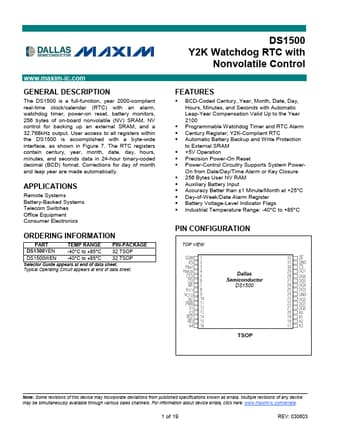

Preview of DS1500 PDF

Datasheet Details

Part number:

DS1500

Manufacturer:

Dallas Semiconducotr

File Size:

351.11 KB

Description:

Y2k watchdog rtc.
