DS15

NPN Transistor

DS15 General Description


*Collector-Emitter Breakdown Voltage- : V(BR)CEO= 100V(Min)
*Fast Switching Speeds
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*Designed for general purpose power amplification and switching such as output or driver stages in appl.

DS15 Datasheet (219.10 KB)

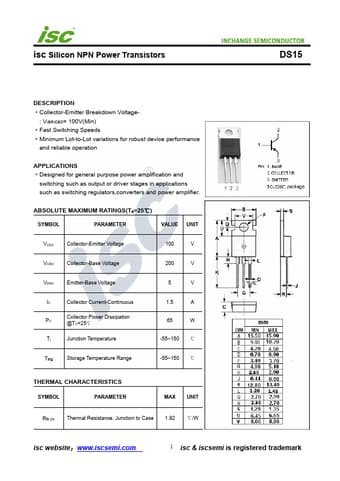

Preview of DS15 PDF

Datasheet Details

Part number:

DS15

Manufacturer:

INCHANGE

File Size:

219.10 KB

Description:

Npn transistor.
