DS1963S

SHA iButton

DS1963S Features

* 4096 bits of read/write nonvolatile (NV) memory organized as 16 pages of 256 bits each Eight memory pages with individual 64-bit secrets and 32-bit read-only non rolling-over page write cycle counters Secrets are write-only and have their own individual write cycle counters O

DS1963S General Description

The DS1963S Monetary iButton with SHA-1 Function is a rugged 4 kbit read/write data carrier that can be easily accessed with minimal hardware. Its NV memory acts as a localized database for public as well as protected data belonging to the owner of the device and the environment in which it is used..

DS1963S Datasheet (349.89 KB)

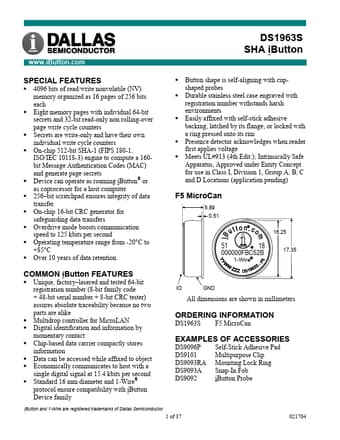

Preview of DS1963S PDF

Datasheet Details

Part number:

DS1963S

Manufacturer:

Dallas Semiconducotr

File Size:

349.89 KB

Description:

Sha ibutton.
