DS1977 - 32KB EEPROM iButton

Product Overview

Dallas Semiconducotr

📥 Download Datasheet

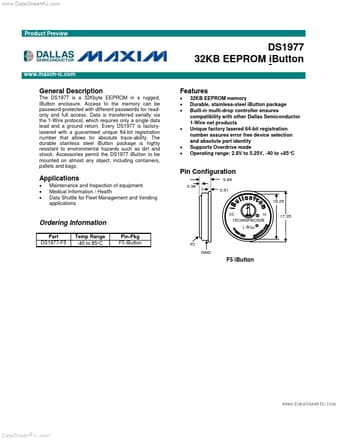

DS1977 32KB EEPROM iButton by Dallas Semiconducotr - Datasheet Preview — Datasheet preview – DS1977

Datasheet Details

Part number	DS1977
Manufacturer	Dallas Semiconducotr
File Size	272.14 KB
Description	32KB EEPROM iButton
Datasheet	DS1977 Datasheet
Additional preview pages of the DS1977 datasheet.

Product details

Description

The DS1977 is a 32Kbyte EEPROM in a rugged, iButton enclosure.

Features

32KB EEPROM memory Durable, stainless-steel iButton package Built-in multi-drop controller ensures compatibility with other Dallas Semiconductor 1-Wire net products Unique factory lasered 64-bit registration number assures error free device selection and absolute part identity Supports Overdrive mode Operating range: 2.8V to 5.25V, -40 to +85°C Pin Configuration.
