DS1972 Datasheet, Ibutton, Maxim Integrated Products

DS1972 Features

  • Ibutton
  • 1024 Bits of EEPROM Memory Partitioned into Four Pages of 256 Bits Individual Memory Pages can be Permanently Write Protected

PDF File Details

Part number:

DS1972

Manufacturer:

Maxim Integrated ↗ Products

File Size:

464.77kb

Download:

📄 Datasheet

Description:

1024-bit eeprom ibutton. The DS1972 is a 1024-bit, 1-Wire EEPROM organized as four memory pages of 256 bits each in a rugged iButton package. Data is written

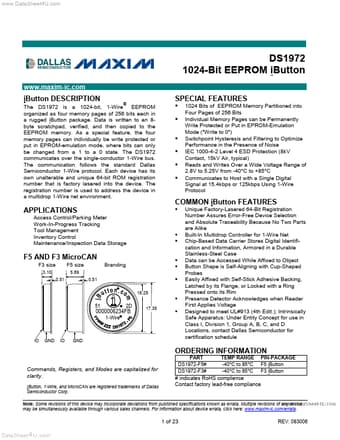

Datasheet Preview: DS1972 📥 Download PDF (464.77kb)
Page 2 of DS1972 Page 3 of DS1972

DS1972 Application

  • Applications Access Control/Parking Meter Work-In-Progress Tracking Tool Management Inventory Control Maintenance/Inspection Data Storage
