DS1089L Center Spread`Spectrum EconOscillator

DS1089L Description

Rev 1; 9/05 3.3V Center Spread-Spectrum EconOscillator™ General .
The DS1089L is a clock generator that produces a spread spectrum (dithered) square-wave output of frequencies from 130kHz to 66.

DS1089L Features

* Factory-Programmed Square-Wave Generator from 33.3MHz to 66.6MHz
* Center Frequency Remains Constant Independent of Dither Percentage
* No External Timing Components Required
* EMI Reduction
* Variable Dither Frequency
* User Programmable Down to 130

📥 Download Datasheet

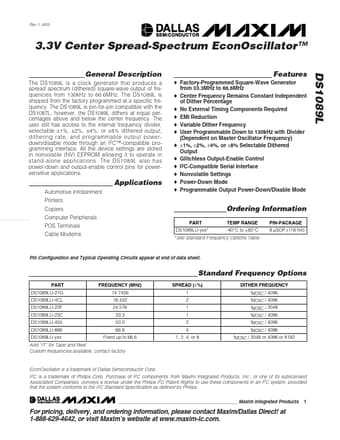

Preview of DS1089L PDF
