DS1091L - Automotive Temperature Range Spread Spectrum Econoscillator

The DS1091L is a low-cost clock generator that is factory trimmed to output frequencies from 130kHz to 66.6MHz with a nominal accuracy of ±0.25%.

The device can also produce a center- or down-dithered spread-spectrum output with pin-selectable dither magnitude and rate.

Assembled in an 8-pin µMAX® p

DS1091L Features

* S Spread-Spectrum Clock Output from 130kHz to 66.6MHz S -40°C to +125°C Operating Temperature Range S ±1.75% Accuracy Across Temperature and Voltage S Factory Trimmed S Center-Dithered (DS1091LUA) or Down-Dithered (DS1091LUB) Spread-Spectrum Output S Pin-Selectable Center-Dither Magnitude of 0%, ±1%

DS1091L_MaximIntegratedProducts.pdf

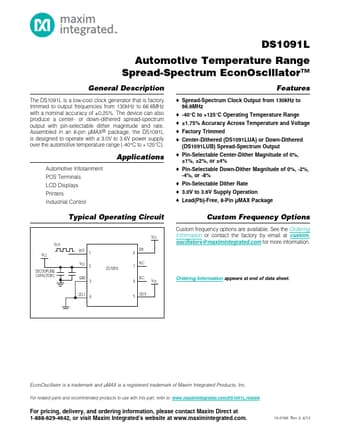

Preview of DS1091L PDF
DS1091L Datasheet Preview Page 2 DS1091L Datasheet Preview Page 3

Datasheet Details

Part number:

DS1091L

Manufacturer:

Maxim Integrated ↗ Products

File Size:

1.19 MB

Description:

Automotive temperature range spread spectrum econoscillator.
