DS1081L - Spread-Spectrum Clock Modulator

Product Overview

Maxim Integrated Products

📥 Download Datasheet

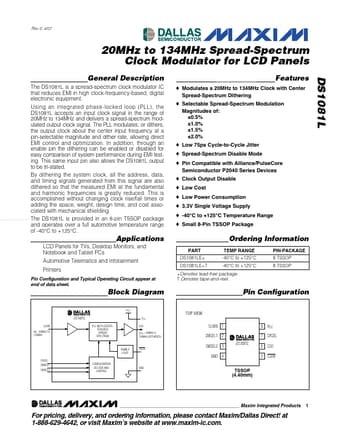

DS1081L Spread-Spectrum Clock Modulator by Maxim Integrated Products - Datasheet Preview — Datasheet preview – DS1081L

Datasheet Details

Part number	DS1081L
Manufacturer	Maxim Integrated Products
File Size	200.45 KB
Description	Spread-Spectrum Clock Modulator
Datasheet	DS1081L Datasheet
Additional preview pages of the DS1081L datasheet.

Product details

Description

The DS1081L is a spread-spectrum clock modulator IC that reduces EMI in high clock-frequency-based, digital electronic equipment.

Features

Modulates a 20MHz to 134MHz Clock with Center Spread-Spectrum Dithering.
Selectable Spread-Spectrum Modulation Magnitudes of: ±0.5% ±1.0% ±1.5% ±2.0%.
Low 75ps Cycle-to-Cycle Jitter.
Spread-Spectrum Disable Mode.
Pin Compatible with Alliance/PulseCore Semiconductor P2040 Series Devices.
Clock Output Disable.
Low Cost.
Low Power Consumption.
3.3V Single Voltage Supply.
-40°C to +125°C Temperature Range.
