DS1086L

3.3V Spread-Spectrum EconOscillator

Maxim Integrated

DS1086L Features

* User-Programmable Square-Wave Generator

* Frequencies Programmable from 130kHz to 66.6MHz

* 0.5%, 1%, 2%, 4%, or 8% Selectable Dithered Output

* Adjustable Dither Rate

* Glitchless Output-Enable Control

* 2-Wire Serial Interface

* Nonvolatile

DS1086L General Description

The DS1086L EconOscillator™ is a 3.3V programmable clock generator that produces a spread-spectrum (dithered) square-wave output of frequencies from 130kHz to 66.6MHz. The selectable dithered output reduces radiated-emission peaks by dithering the frequency 0.5%,1%, 2%, 4%, or 8% below the programme.

DS1086L Datasheet (266.01 KB)

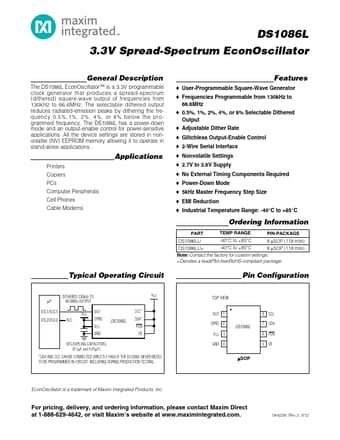

DS1086L Datasheet Preview — Preview of DS1086L PDF

Datasheet Details

Part number:

DS1086L

Manufacturer:

Maxim Integrated ↗

File Size:

266.01 KB

Description:

3.3v spread-spectrum econoscillator.
