DS1086 Datasheet, Econoscillator, Maxim

DS1086 Features

• Econoscillator o User-Programmable Square-Wave Generator o Frequencies Programmable from 260kHz to 133MHz o 2% or 4% Selectable Dithered Output o Glitchless Output-Enable Control o 2-Wire Serial Inter

PDF File Details

Part number:

DS1086

Manufacturer:

Maxim

File Size:

182.02kb

Download:

📄 Datasheet

Description:

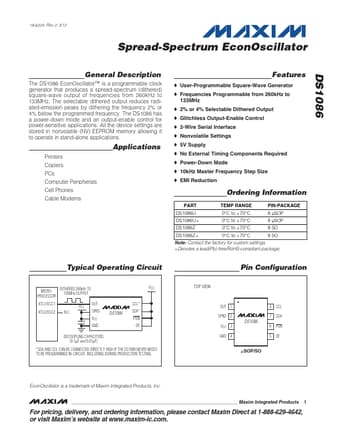

Spread-spectrum econoscillator. The DS1086 EconOscillator™ is a programmable clock generator that produces a spread-spectrum (dithered) square-wave output of frequen

DS1086 Application

• Applications All the device settings are stored in nonvolatile (NV) EEPROM memory allowing it to operate in stand-alone applications. Applications
