DS1099 - Low-Frequency Dual EconOscillator

Product Overview

Maxim Integrated

Datasheet Details

Part number	DS1099
Manufacturer	Maxim Integrated
File Size	406.54 KB
Description	Low-Frequency Dual EconOscillator
Datasheet	DS1099 Datasheet

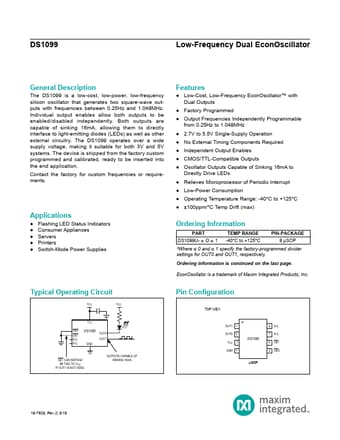

Additional preview pages of the DS1099 datasheet.

Product details

Description

The DS1099 is a low-cost, low-power, low-frequency silicon oscillator that generates two square-wave outputs with frequencies between 0.25Hz and 1.048MHz.

Features

Low-Cost, Low-Frequency EconOscillator™ with Dual Outputs.
Factory Programmed.
Output Frequencies Independently Programmable from 0.25Hz to 1.048MHz.
2.7V to 5.5V Single-Supply Operation.
No External Timing Components Required.
Independent Output Enables.
CMOS/TTL-Compatible Outputs.
Oscillator Outputs Capable of Sinking 16mA to Directly Drive LEDs.
Relieves Microprocessor of Periodic Interrupt.
